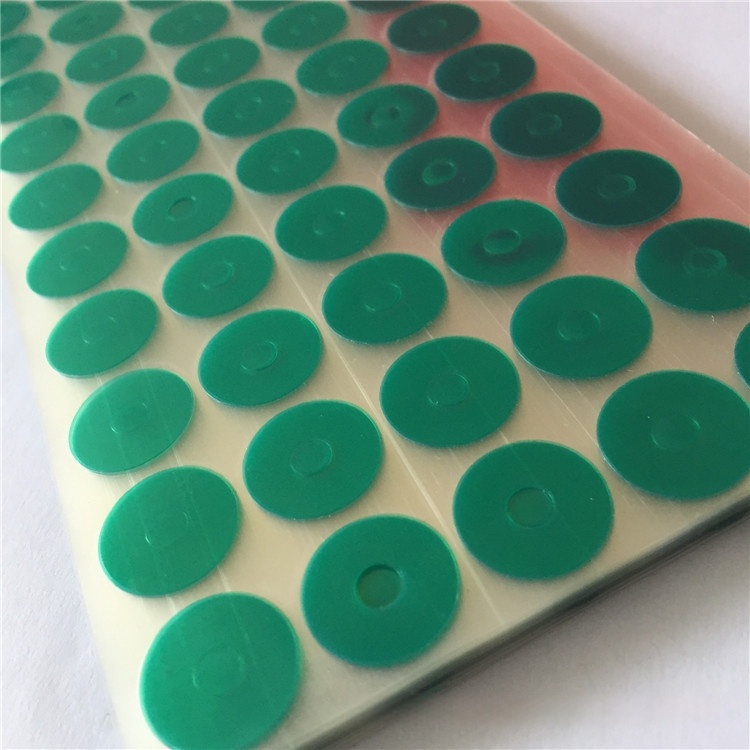

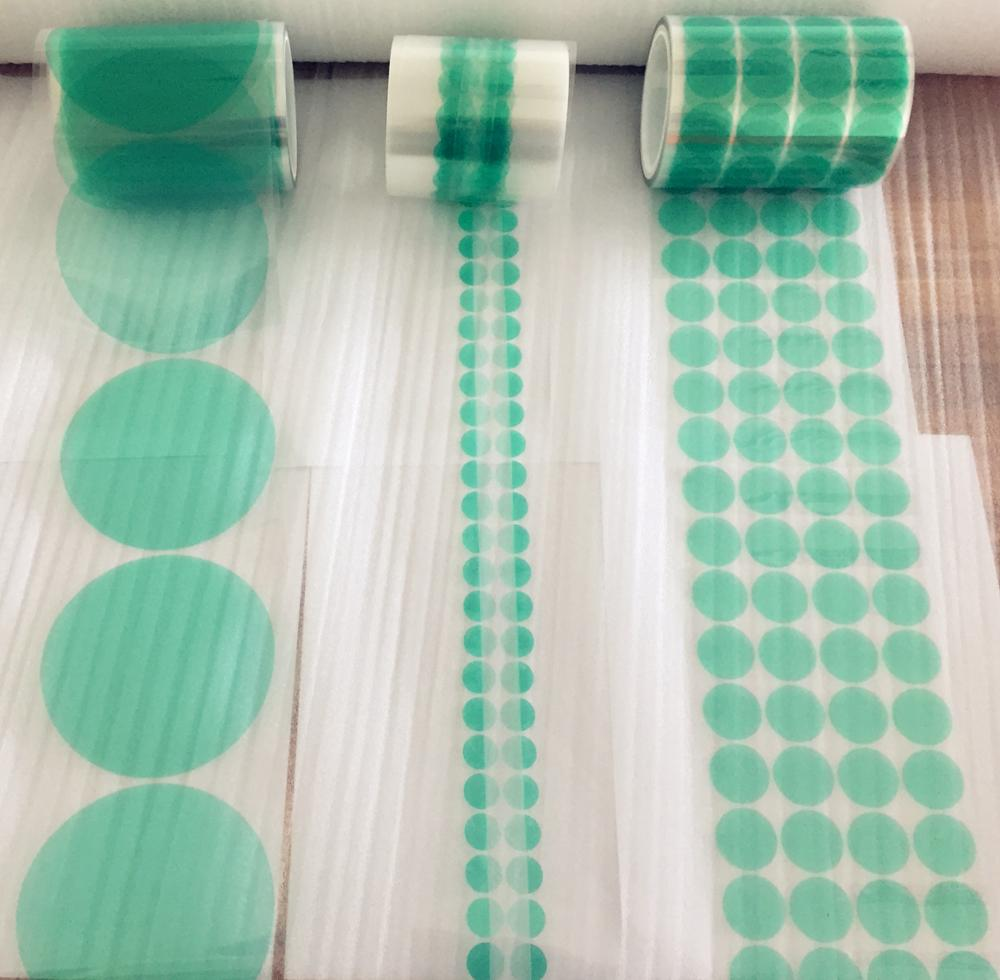

High Temp Green Masking Discs (Polyester Dots) – Die-Cut Solutions
Leader Masking Green Masking Discs (also known as Masking Dots) are pre-cut circles made from our premium Green PET Tape. Designed for speed and precision, they allow operators to mask grounding points and holes 50% faster than using standard tape rolls.
-
Material: Green Polyester (PET)
-
Adhesive: Silicone (No Residue)
-
Feature: Pre-cut on a clear liner for fast peeling
-
Max Temp: 204°C (400°F)
Description
Product Overview
Stop wasting time cutting tape with scissors! Leader Masking High Temp Masking Discs are the ultimate time-saver for your production line.
We convert our industry-standard Green Polyester Tape into precision Die-Cut Dots. These are perfect for masking circular grounding areas, bolt holes, and flat surfaces. Supplied on a split-back or clear liner, they are easy to peel and apply, ensuring a perfectly round, clean paint edge every time.
Key Features & Benefits
-
🚀 Boost Efficiency: “Peel and Stick” application is significantly faster than cutting tape manually. Reduce your labor costs and masking time by up to 50%.
-
🎯 Precision Masking: Each disc is die-cut to an exact diameter. This guarantees a consistent, professional-looking circular unpainted area (ideal for Grounding/Earthing points).
-
🚫 Zero Residue: Like our Green Tape, these discs feature a premium Silicone Adhesive that removes cleanly after baking at 204°C (400°F).
-
💪 Tough & Durable: The 2-mil polyester film will not tear during removal, even under heavy powder thickness.
-
✨ Easy-Peel Design: We offer Split-Back Liners or Wishbone Handles (upon request) to make removing the dots from the backing paper effortless, even with gloves on.
Technical Specifications
| Property | Value |
| Backing Material | Polyester (PET) Film |
| Adhesive Type | Silicone |
| Total Thickness | 0.085 mm (3.5 mil) |
| Temp Resistance | 204°C (400°F) / 30 mins |
| Diameter Tolerance | +/- 0.1 mm |
| Color | Green |
Standard Size Chart
We can die-cut ANY diameter from 3mm to 200mm. Below are common sizes.
| Part No. | Diameter (mm) | Diameter (inch) | Discs per Roll |
| GD-006 | 6 mm | 1/4″ | 2,000 |
| GD-008 | 8 mm | 5/16″ | 2,000 |
| GD-010 | 10 mm | 3/8″ | 2,000 |
| GD-012 | 12.7 mm | 1/2″ | 2,000 |
| GD-015 | 15 mm | 19/32″ | 1,000 |
| GD-020 | 20 mm | 3/4″ | 1,000 |
| GD-025 | 25.4 mm | 1″ | 1,000 |
| GD-050 | 50.8 mm | 2″ | 500 |
Industry Applications
-
Grounding Points: Creating a perfect circular bare metal area for electrical earthing on chassis and cabinets.
-
Hole Patching: Covering unused holes or slots during the powder coating process.
-
PCB Manufacturing: Used as “Conformal Coating Dots” to protect test points on circuit boards.
-
Anodizing: Masking flat circular areas from acid etching.
Why Buy from Leader Masking?
-

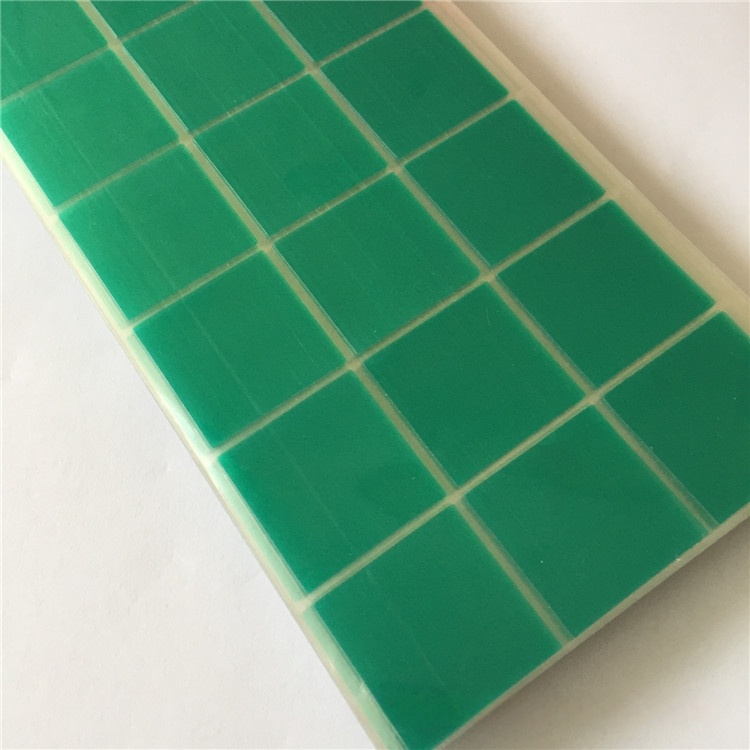

Custom Die-Cutting: We make our own molds. We can cut Donuts (Washers), Squares, Rectangles, or any custom shape you draw.
-
Wishbone Handle: Need to remove the dot fast? We can add a “Wishbone” handle to the disc for ultra-fast removal.
-
Factory Direct: Save 30% compared to buying pre-cut dots from distributors.
